1.0 Tonne 2.4m ice cream truck body UTE pick up ice cream truck

FOB Reference Price:Get Latest Price
US $3,000-11,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
30 Unit/Units per Month
Port:
Shenzhen/Qingdao Port, China
Report Suspicious Activity
Overview
Quick Details
Brand Name:
COLDKING
Model:
AJC2400IC2
Place of Origin:
China
Transmission Type:
Manual
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 4
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
5000mm(L) x 1850mm(W) x 2250mm(H)
Box Dimensions (L x W x H) (mm):
2400mm(L) x 1800mm(W) x 1500mm(H)
Temperature Range:
+10C to -40C, -40C To -25C
Gross Vehicle Weight:
3000
Suitable Truck Chassis:
For Hilux, Isuzu D-Max, Kia 2500, Foton Tunland
Suitable Cargo:
Ice, Ice Cream, Deep Frozen Foods, Deep Frozen Chemicals
Ice Cream Truck Body Color Option:
Any Color/Advertising Printing Sticker
Rear Door Option:
Double Opening/Single Opening
Side Door Option:
Single Opening/Double Opening
Condenser Mounted Option:
Over-Cab Mounted
Key Spare Parts Partners:
Bitzer, Danfoss, EMB, REFCO
Serviced Clients:
Wall's/Nestle/Haagen Daz/Prefere Hong Kong/Meiji/Artika
Export Country/Area:
USA, UAE, Peru, Costa Rica, Ecuador, Uruguay, Sri Lanka, etc.
Packaging & Delivery
Packaging Details
One 40HC loaded 7 units of pick up ice cream truck body inside
One 40HC loaded 2 units of pick up ice cream truck inside
Delivery Time
Shipped in 30 days after payment
Truck Body Details


Ice Cream Truck Body Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
2.4m(L)x1.8m(W)x1.5m(H) ice cream truck body
Ice Cream Truck Body Inner Size
2.23m(L)x1.63m(W)x1.33m(H)  ice cream truck body
Roof/Floor Panel
85mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
85mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None
Side Door Location
None
Side Door Type
None
Side Door Size
None
Rear Door Type
Full Size Double Opening Rear Door/600mm(W) x 900mm(H) Single Opening Rear Door
Truck Body Flooring
Reinforced Floor Covered With Aluminum Checkered Plate/Stainless Steel Sheet
Ice Cream Truck Body Inside Cargo Control System
None, Optional   ice cream truck body  ice cream truck
Ceiling Light
ice cream truck body
1 (One) Set of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch  ice cream truck body  ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain  ice cream truck body  ice cream truck body
European Standard -40C PVC Strip Curtain System For Doors

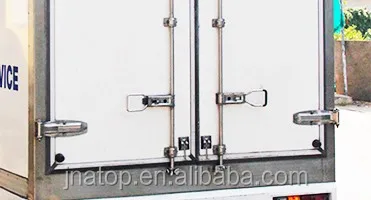

Full Size Double Opening Rear Door

Full Size Double Opening Rear Door With Full Sets of Stainless Steel Lock Sets & Hinges For Rapid Unloading & Delivery of Cargo In-city Daily Delivery. ice cream truck

Aluminum Checkered Plate Flooring

Reinforced Floor Covered With Aluminum Checkered Plate, Stainless Steel Sheet Flooring are Optional ice cream truck body  ice cream truck body  ice cream truck body

1.7m(W) x 1.5m(H) Rear Door

ice cream truck body ice cream truck

1.8m(W) x 1.5m(H) Rear Door

ice cream truck body ice cream truck

1.8m(W) x 1.3m(H) Rear Door

ice cream truck body ice cream truck

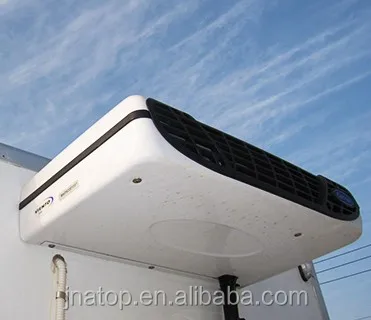

Refrigeration Unit
Optional Refrigeration Unit - 1
Refrigeration Unit Brand
Carrier reefer truck body
Refrigeration Unit Model
V300
Refrigeration Unit Type
Truck Engine Direct Driven, Condenser & Evaporator Split reefer truck body
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
Carrier 130
Compressor No. of Cylinders
6 reefer truck body
Compressor Displacement
131cm3 reefer truck body
Max. Recommended Speed
2,400rpm
Airflow Volume
1,000m3/Hr
Discharge Velocity (Air Throw)
reefer truck body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power @2400rpm)
2,760W
1,530W
Electric Stand-By System
Unavailable
Refrigeration Capacity
(On Electric Stand-By)
Defrost
Automatic Hot Gas Defrost/Manual Defrost

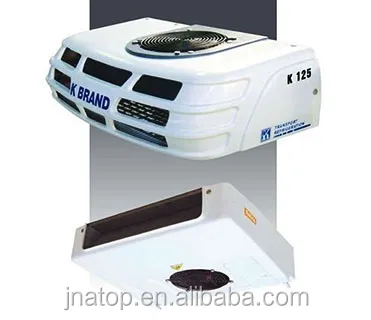

Optional Refrigeration Unit - 2
Refrigeration Unit Brand
Kingtec
Refrigeration Unit Model
K125
Refrigeration Unit Type
Truck Engine Direct Driven, Condenser & Evaporator Split reefer truck body
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
X214 reefer truck body
Compressor No. of Cylinders
5 reefer truck body
Compressor Displacement
108cm3 reefer truck body
Max. Recommended Speed
3000rpm
Airflow Volume
1,200m3/Hr
Discharge Velocity (Air Throw)
 reefer truck body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power @2400rpm)
2,020W
1,130W
Electric Stand-By System
Unavailable
Refrigeration Capacity
(On Electric Stand-By)
Defrost
Automatic Hot Gas Defrost/Manual Defrost
Optional Items

Body Ladder & Top Brackets

Stainless Steel Body Ladder & Top Brackets For Additional Cargo & Used Packages. ice cream truck body reefer truck truck body ice cream truck body reefer truck truck body

Roll Carts

For rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of ice cream truck body.

Internal Dividers

Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery.

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

Products Show

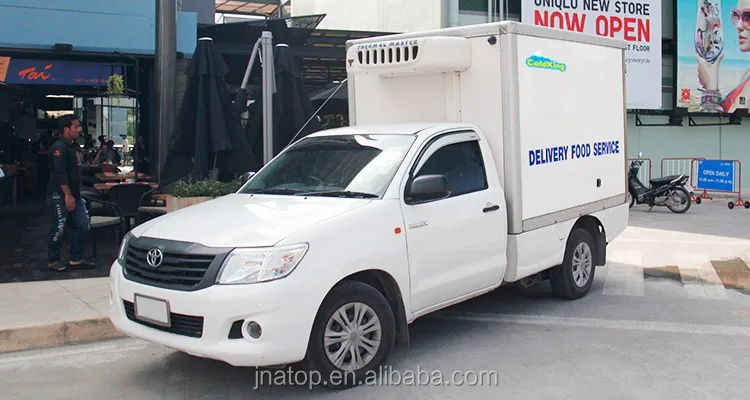

2.4m Ice Cream Pick up Body

2.4m Eutectic ice cream pick up truck Body fitted on pick up truck chassis

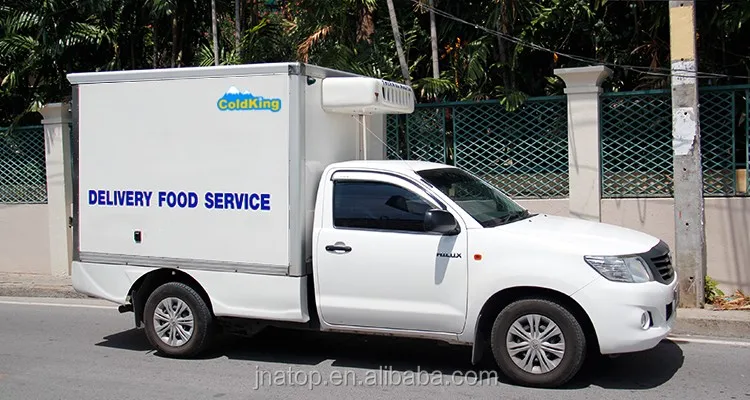

2.45m UTE Pickup Truck

2.45m 1 Tonne UTE pickup truck ice cream truck body reefer truck truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis ice cream truck body reefer truck truck body
