1.0 Tonne 2.45m ice cream truck body UTE pick up ice cream truck

FOB Reference Price:Get Latest Price
US $3,000-11,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
COLDKING
Model:
AJC2450IC2
Place of Origin:
China
Transmission Type:
Manual
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 4
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
5000mm(L) x 1850mm(W) x 2250mm(H)
Box Dimensions (L x W x H) (mm):
2450mm(L) x 1800mm(W) x 1500mm(H)
Temperature Range:
+10C to -40C, +10C To -40C
Gross Vehicle Weight:
3000
Suitable Truck Chassis:
For Hilux, Isuzu D-Max, Kia 2500, Foton Tunland
Suitable Cargo:
Ice, Ice Cream, Deep Frozen Foods, Deep Frozen Chemicals
Pickup Truck Body Color Option:
Any Color/Advertising Printing Sticker
Rear Door Option:
Double Opening/Single Opening
Side Door Option:
Single Opening/Double Opening
Condenser Mounted Option:
Over-Cab Mounted
Refrigeration Unit:
Carrier, Thermo King, Kingtec, Ice Forest
Serviced Clients:
Wall's/Nestle/Haagen Daz/Prefere Hong Kong/Meiji/Artika
Export Country/Area:
USA, UAE, Peru, Costa Rica, Ecuador, Uruguay, Sri Lanka, etc.
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
One 40HC loaded 7 units of pick up ice cream truck body inside
One 40HC loaded 2 units of pick up ice cream truck inside
Port
Shenzhen Port, China
Lead Time :
Shipped in 30 days after payment
Truck Body Details


Ice Cream Truck Body Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).

Ice Cream Truck Body Outer Size

2.45m(L)x1.8m(W)x1.5m(H)
ice cream truck body
Ice Cream Truck Body Inner Size
2.28m(L)x1.63m(W)x1.33m(H) ice cream truck body
Roof/Floor Panel
85mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
85mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None
Side Door Location
Left Side Wall
Side Door Type
Single Opening
Side Door Size
600mm(W) x 900mm(H)
Rear Door Type
Full Size Double Opening Rear Door/600mm(W) x 900mm(H) Single Opening Rear Door
Ice Cream Truck Body Flooring
Reinforced Floor Covered With Anti-Slip FRP Flooring, Aluminum Checkered Plate, Stainless Steel Sheet Are Optional.
Ice Cream Truck Body Inside Cargo Control System
None, Optional ice cream truck ice cream truck
Ceiling Light
ice cream truck
1 (One) Set of 12/24V Multi-Voltage LED
Marker Light
ice cream truck
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Side & Rear Doors

Full Size Double Opening Rear Door

Full Size Double Opening Rear Door With Full Sets of Stainless Steel Lock Sets & Hinges For Rapid Unloading & Delivery of Cargo In-city Daily Delivery. reefer truck body

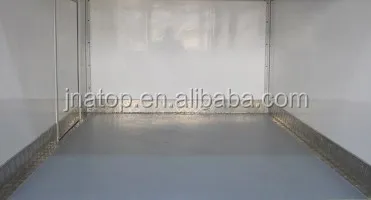

Anti-Slip FRP  Flooring

Any Color Anti-Slip FRP Flooring Available. Aluminum Checkered Plate, Stainless Steel Sheet Are Optional. ice cream truck body  ice cream truck body  ice cream truck

1.7m(W) x 1.5m(H) Rear Door

ice cream truck body  ice cream truck

1.8m(W) x 1.5m(H) Rear Door

ice cream truck body ice cream truck

1.8m(W) x 1.3m(H) Rear Door

ice cream truck body ice cream truck

Refrigeration Unit
Optional Refrigeration Unit - 1
Refrigeration Unit Brand
Carrier reefer truck body
Refrigeration Unit Model
V300
Refrigeration Unit Type
Truck Engine Direct Driven, Condenser & Evaporator Split  ice cream truck body
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
Carrier 130 reefer truck
Compressor No. of Cylinders
ice cream truck
Compressor Displacement
131cm3  ice cream truck
Max. Recommended Speed
2,400rpm
Airflow Volume
1,000m3/Hr reefer truck
Discharge Velocity (Air Throw)
ice cream truck body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power @2400rpm)
2,760W
1,530W
Electric Stand-By System
Unavailable
Refrigeration Capacity
(On Electric Stand-By)
reefer truck
reefer truck
Defrost
Automatic Hot Gas Defrost/Manual Defrost
Optional Refrigeration Unit - 2
Refrigeration Unit Brand
Kingtec
Refrigeration Unit Model
K125
Refrigeration Unit Type
Truck Engine Direct Driven, Condenser & Evaporator Split reefer truck body
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
X214 reefer truck body
Compressor No. of Cylinders
5  ice cream truck
Compressor Displacement
108cm3
Max. Recommended Speed
3000rpm
Airflow Volume
1,200m3/Hr
Discharge Velocity (Air Throw)
 ice cream truck body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power @2400rpm)
2,020W
1,130W
Electric Stand-By System
Unavailable
Refrigeration Capacity
(On Electric Stand-By)
reefer truck
reefer truck
Defrost
Automatic Hot Gas Defrost/Manual Defrost
Optional Items

Body Ladder & Top Brackets

Stainless Steel Body Ladder & Top Brackets For Additional Cargo & Used Packages ice cream truck body ice cream truck body ice cream truck ice cream truck body ice cream truck body ice cream truck ice cream truck body

Roll Carts

For rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of ice cream truck body. ice cream truck body ice cream truck body ice cream truck

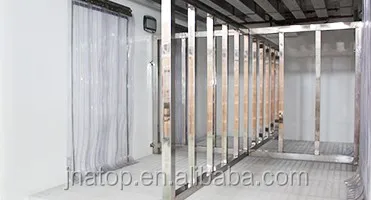

Internal Dividers

Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery. ice cream truck body ice cream truck body ice cream truck

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage ice cream truck body ice cream truck body ice cream truck

Products Show

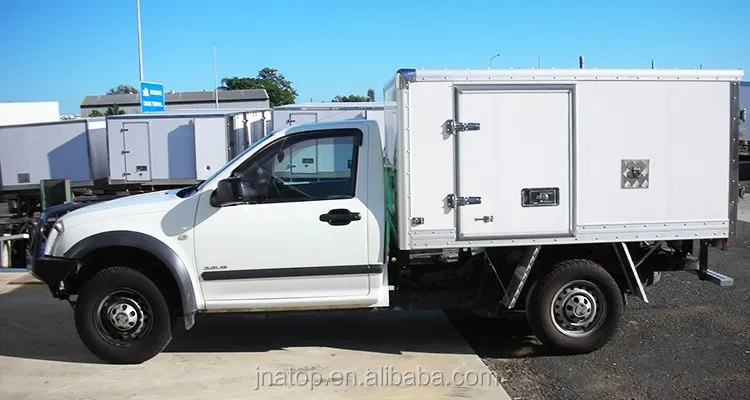

2.4m Ice Cream Pick up Body

2.4m Eutectic ice cream pick up truck Body fitted on pick up truck chassis ice cream truck body

2.4m UTE Pick up Truck Body

2.4m 1.0 Tonne refrigerated UTE pick up truck body ice cream truck body ice cream truck body ice cream truck

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis ice cream truck body ice cream truck body
