2.4m ultra light duty UTE pick up ice cream truck body

FOB Reference Price:Get Latest Price
US $3,000-11,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
ice cream truck body
Truck Model:
For Hilux, Isuzu D-Max
Size:
2400mm(L) x 1800mm(W) x 1500mm(H)
Material:
FRP+ PU FOAM + FRP
OEM No.:
AJC2400IC2
Place of Origin:
Shandong, China (Mainland)
Brand Name:
ColdKing
Model Number:
AJC2400IC2
Suitable Truck Chassis:
For Hilux, Isuzu D-Max, Kia 2500, Foton Tunland
Suitable Cargo:
Ice, Ice Cream, Deep Frozen Foods, Deep Frozen Chemicals
Temperature Range:
-40C To -25C
Ice Cream Truck Body Color Option:
Any Color/Advertising Printing Sticker
Rear Door Option:
Double Opening/Single Opening

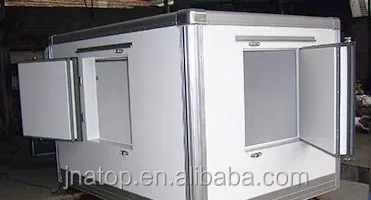

Side Door Option:
Single Opening/Double Opening
Condenser Mounted Option:
Over-Cab Mounted
Key Spare Parts Partners:
Bitzer, Danfoss, EMB, REFCO
Serviced Clients:
Wall's/Nestle/Haagen Daz/Prefere Hong Kong/Meiji/Artika
Export Country/Area:
USA, UAE, Peru, Costa Rica, Ecuador, Uruguay, Sri Lanka, etc.
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
One 40HC loaded 7 units of pick up ice cream truck body inside
One 40HC loaded 2 units of pick up ice cream truck inside
Port
Shenzhen/Qingdao Port, China
Lead Time :
Shipped in 30 days after payment
Truck Body Details


Ice Cream Truck Body Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
2.4m(L)x1.8m(W)x1.5m(H) ice cream truck body
Ice Cream Truck Body Inner Size
2.23m(L)x1.63m(W)x1.33m(H)  ice cream truck body
Roof/Floor Panel
85mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
85mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
Optional ice cream truck
Side Door Location
Optional ice cream truck
Side Door Type
None
Side Door Size
None
Rear Door Type
Full Size Double Opening Rear Door/600mm(W) x 900mm(H) Single Opening Rear Door
Ice Cream Truck Body Flooring
Reinforced Floor Covered With Removable PVC Grating
Ice Cream Truck Body Inside Cargo Control System
Stainless Steel Internal Dividers
Ceiling Light
ice cream truck body
1 (One) Set of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
Ceiling Light Switch  ice cream truck body  ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain  ice cream truck body  ice cream truck body
European Standard -40C PVC Strip Curtain System For Doors

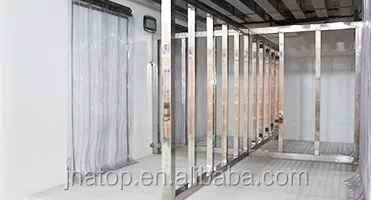

Internal Dividers

Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery.

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

1.7m(W) x 1.5m(H) Rear Door

ice cream truck body ice cream truck

1.8m(W) x 1.5m(H) Rear Door

ice cream truck body ice cream truck

1.8m(W) x 1.3m(H) Rear Door

ice cream truck body ice cream truck

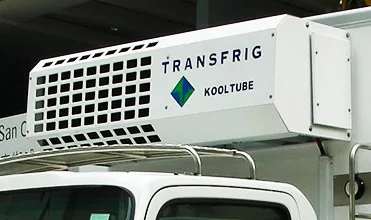

Kooltube Unit

Key Features

ColdKing Kooltube is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT180-08N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split
Refrigeration Capacity
1,650W (@ -40C)
2,295W (@ -35C)
3,960W (@ -25C)
Total Refigeration Heat Exchange Rate
3,312Kcal/h
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Under Chassis
Kooltube Beams Assembly
1.80m(L) x 08 Pcs
Compressor Brand & Power
Bitzer 2.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz

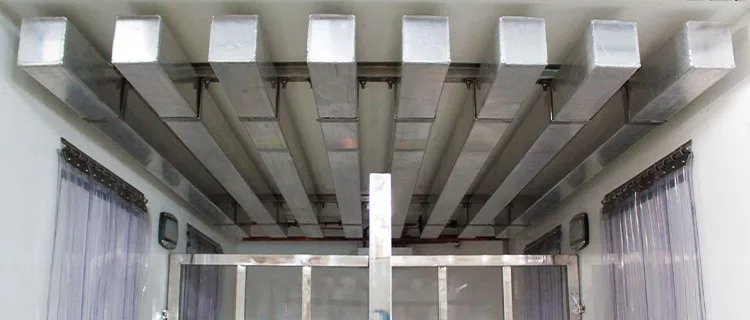

1800mm(L)  x 8 pieces Kooltube Beams

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications.

Why Kooltube
The advantages of KOOLTUBE EUTECTIC refrigeration systems as opposed to other EUTECTIC PLATE refrigeration system are as following:
Lighter:
For same refrigeration capacity, Kooltube EUTECTIC refrigeration system is 15% lighter than EUTECTIC PLATES refrigeration system. It is helpful to reduce curb weight and to raise loading capacity.
Better Stability:
Normally, there are need 3-8 pieces EUTECTIC PLATES for usual dimension truck body, but for KOOLTUBE EUTECTIC system is just need 8 -12 pieces tubes inside. In case of that one of them damaged or shut down,that is means KOOLTUBE system just lost 1/8 or 1/12, but for EUTECTIC PLATES is 1/3 or 1/8. It will harm goods’ quality badly.
Easy installation:
Due to rectangular tube structure and lighter weight (10.5kg/M), Kooltube is easier installation than EUTECTIC PLATES. It is enough to install whole kooltube system by two skilled workers. But, for eutectic plates system, the 80kg of each plate will occupy 3-4 workers to install it. And the design of each one or two eutectic plates with one expansion valve is challenge for engineer to make a symmetrical refrigeration effect. However, Kooltube eutectic just has one expansion valve for whole system. It is easy to adjust whole system at good condition.
Better Efficient:
Scientifically, cold Air exchange downwards. As eutectic plates is flat structure. That is means it has almost 50% performance is useless because one surface of eutectic Plate is face to roof panel.It just have 50% surface to working for body space, so they need install more eutectic plate inside body to remedy its shortage. But Kooltube eutectic system is efficient structure, it just have about 20% surface is face to roof panel; almost 80% surface is available to work.
Safety & Long Life:
KOOLTUBE’s eutectic solution is safe, non-toxic and non-corrosive for foods. eutectic plate’s cooling brine mixture solution is corrosive and skin irritation. And, for long time working, once rusting on iron shell, its corrosive mixture solution will erode and perforate eutectic plate easily. If so, when its mixture solution falls onto skin or foods, it is terribly.
Excellent Suitability:
Kooltube is tailor-made products, so we can meet any body dimension requirements. eutectic plates are standard dimension.
Faster:
Due to efficient structure and powerful condenser unit, at same body dimension and refrigeration capacity, Kooltube absolutely provide enough frozing power to goods, and it will take less time than eutectic plate.
COMPARISON BETWEEN THE TWO SYSTEMS
Item
KOOLTUBE
EUTECTIC PLATE
Weight
Light
Heavy
Materials
Aluminum Alloy & Stainless Steel
Galvanized Iron
Antirust
Excellent, never rust
Bad, easier rust to perforating action on iron shell
Safety
Non-toxic, non-corrosive eutectic solution
Corrosive cooling brine mixture solution
Skin Irritation
Non
Yes
Icing
Difficult
Easy
De-icing
Easy
Difficult
Optional Items

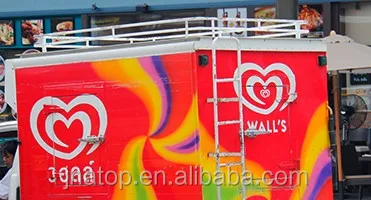

Body Ladder & Top Brackets

Stainless Steel Body Ladder & Top Brackets For Additional Cargo & Used Packages. ice cream truck body reefer truck truck body ice cream truck body reefer truck truck body

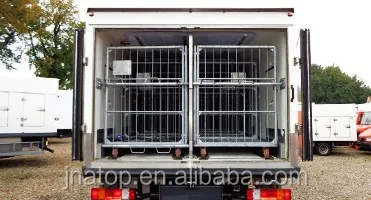

Roll Carts

For rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of ice cream truck body.

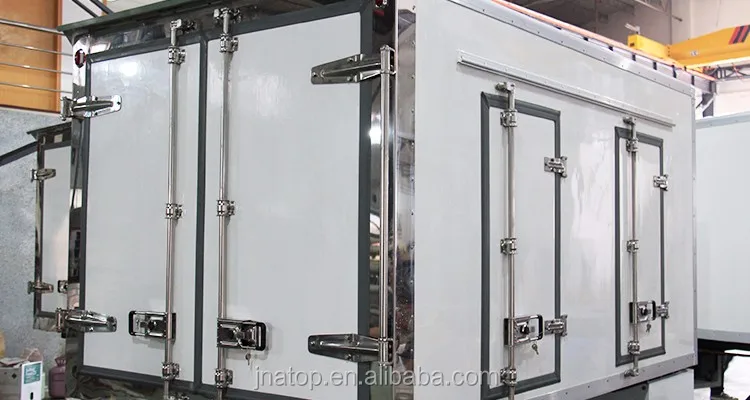

Customized Size Single Opening Rear Door

Tailor-Made Size Single Opening Rear Door With Full Sets of Stainless Steel Lock Sets & Hinges For Smart Unloading & Delivery of Cargo In-city Daily Delivery. ice cream truck

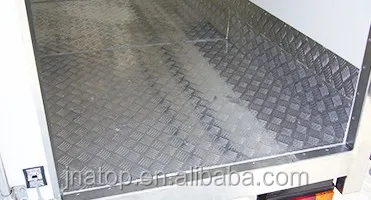

Aluminum Checkered Plate Flooring

Reinforced Floor Covered With Aluminum Checkered Plate, Stainless Steel Sheet Flooring are Optional ice cream truck body  ice cream truck body  ice cream truck body

Products Show

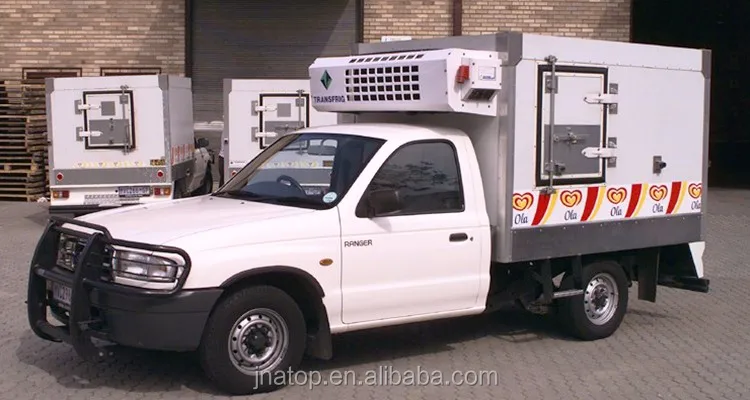

2.4m Ice Cream Pick up Truck

2.4m Eutectic ice cream pick up truck Body fitted on pick up truck chassis

2.45m UTE Pickup Truck

2.45m 1 Tonne UTE pickup truck ice cream truck body reefer truck truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis ice cream truck body reefer truck truck body
