ColdKing 3.2m ice cream truck body with Kooltube eutectic unit for Foton and Mitsubishi CANTER FE25 chassis 2.5t ice cream truck

FOB Reference Price:Get Latest Price
US $7,000-15,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
20 Unit/Units per Month
Port:
Shenzhen Port, China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity (Load):
1 - 10t
Drive Wheel:
4x2
Horsepower:
150 - 250hp
Transmission Type:
Manual
Emission Standard:
Euro 2
Fuel Type:
Diesel
Engine Capacity:
< 4L
Size:
4900(L) x 1900(W) x 2400mm(H)
Gross Vehicle Weight:
5000
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ColdKing
Model Number:
AJC320IC2-0SD-3HRD
Temperature Range:
-40C To -25C
Ice Cream Truck Body Color:
Outside White/Inside White
Side Door Size & Type:
Without Side Door
Rear Door Type:
Full Size Triple Opening Rear Door
Condenser Mounted:
Over-Cab
Compressor:
Bitzer Semi-Hermetic 4.0Hp 220V/60HZ/3 Phase
Compressor Cooling Capacity:
2485W (-40℃), 5620W(-25℃)
Refrigeration Method:
Kooltube Eutectic Roof Mounted
Kooltube Size & Quantity:
2.6m (L) x 10 Pcs
Refrigerant:
R404a
Packaging & Delivery
Packaging Details

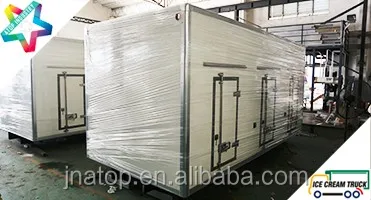

One 40HC loaded 3 units of 3.2m ice cream truck body inside
Delivery Time
Shipped in 30 days after payment

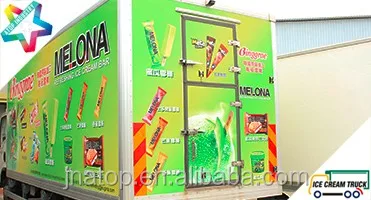

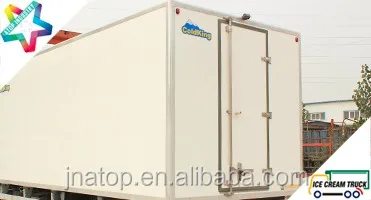

Ice Cream Truck Body

Ice Cream Truck Body
Key Features

ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
3.2m(L)x1.9m(W)x1.9m(H)
Ice Cream Truck Body
Inner Size
2.99m(L)x1.69m(W)x1.69m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
Without Side Door
Side Door Location
None
Side Door Type
None
Side Door Size
None
Rear Door Type
Full Size Triple Opening Rear Door,  Middle Rear Door Open First
Truck Body Flooring
Reinforced Floor Covered With Removable PVC Grating ice cream truck body reefer truck
Cargo Control System
None Ice Cream Truck Body
Ceiling Light ice cream truck body
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light  ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch  ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
ice cream truck body
European Standard -40C PVC Strip Curtain System For Rear Doors
Refrigeration Unit
Service Ladder
None/Optional
ice cream truck body
Refrigeration Unit
Service Platform
None/Optional
ice cream truck body

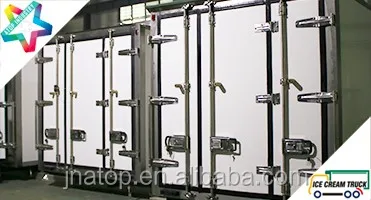

Full Size Triple Opening Rear Door

With Full Sets of Stainless Steel Lock Sets & Hinges, Sealed By Low Temperature High Quality Door Gasket

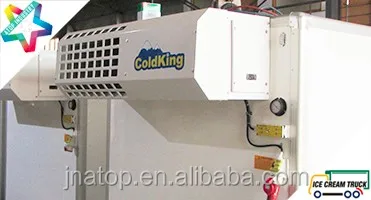

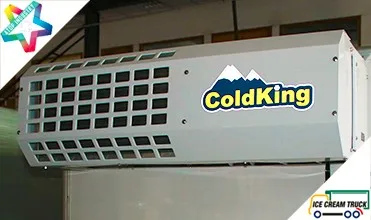

Over-Cab Condenser Mounted

Over-Cab condenser mounted to fit light duty truck chassis cab style Ice Cream Truck Body

Kooltube Eutectic

ColdKing Kooltube Eutectic System

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT260-10N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split mini ice cream truck body
Compressor Cooling Capacity:
2,485W (@ -40C)
3,335W (@ -35C)
5,620W (@ -25C)
Total Refrigeration Heat Exchange Rate
5,980Kcal/h mini ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Over-Cab
Kooltube Beams Size x Qty.
2.60m(L) x 10 Pcs
Compressor Brand & Power
Bitzer 3.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz mini ice cream truck body

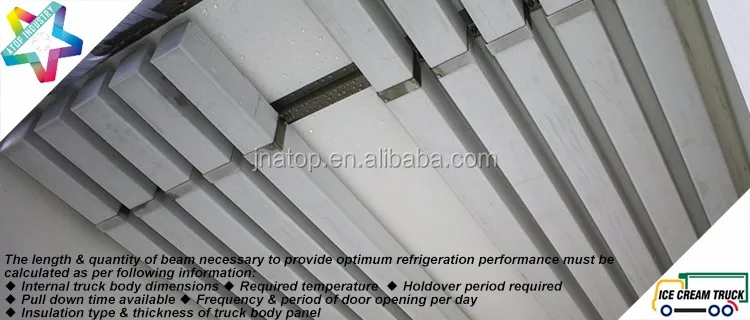

2,600mm(L)  x 10 pieces Kooltube Beams  ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. mini ice cream truck body

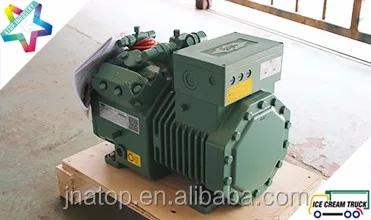

Bitzer Compressor

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

Danfoss Parts

Schneider Electric Control

EBM Fan

Optional Items

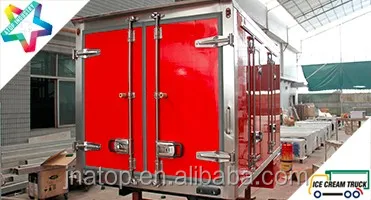

Full Size Double Opening Rear Door


Without Rear Door


Customized Vertical Double Opening Rear Door


Customized Size Single Opening Rear Door

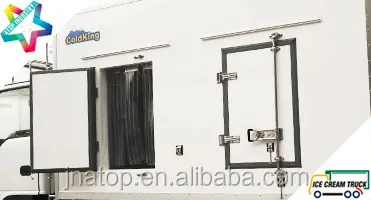

Customized Size Single Opening Side Door

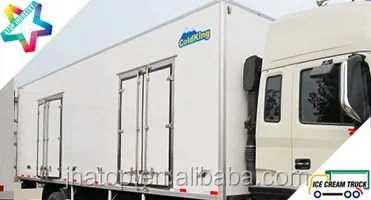

Customized Size Double Opening Side Door

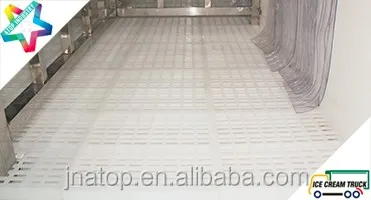

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

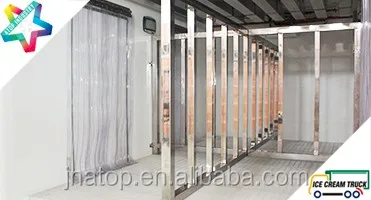

Internal Dividers

Internal Dividers In Stainless Steel To Divide Self-contained Cargo Space For Rapid & Efficient Loading & Delivery.

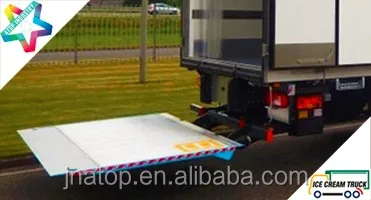

Hydraulic Tail Lift ice cream truck body

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

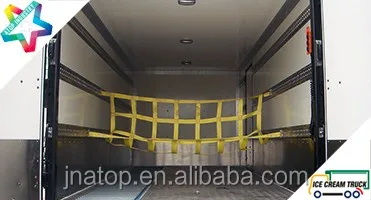

Cargo Control System ice cream truck body

Smart & customized cargo Loading control system

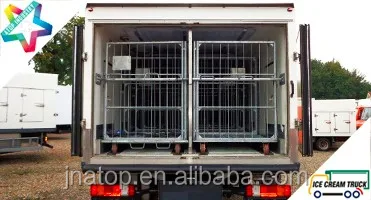

Roll Carts  ice cream truck body eutectic kooltube

Roll carts for rapid and efficient loading, delivery and unloading goods

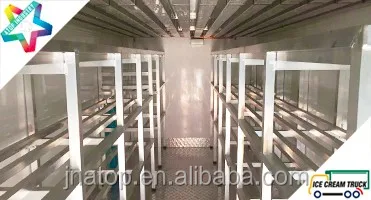

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy
Products Show

2.7m Ice Cream Truck Body

2.7m ice cream truck body fitted on Hyundai H100 truck chassis  mini ice cream truck body

2.4m Ice Cream Pickup Truck

2.4m (L) x 1.8m(W) x 1.5m(H) ice cream pickup body fitted on Hilux pickup chassis ice cream truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis mini ice cream truck body
