ColdKing 5.0m ice cream truck body Kooltube eutectic refrigeration unit (cold plate) ice cream truck for sales

FOB Reference Price:Get Latest Price
US $15,500-18,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
COLDKING
Model:
AJC5000IC2
Place of Origin:
China
Transmission Type:
Manual
Condition:
New
Horsepower:
150 - 250hp
Emission Standard:
Euro 4
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
6300mm(L) x 2250mm(W) x 3000mm(H)
Box Dimensions (L x W x H) (mm):
5000mm(L) x 2200mm(W) x 2000mm(H)
Temperature Range:
-25C to -40C, -40C To -25C
Gross Vehicle Weight:
10000
Suitable Truck Chassis:
Isuzu NQR200, Chevrolet NMR85, Mitsubishi Canter FE
Suitable Cargo:
Ice, Ice Cream, Deep Frozen Foods, Deep Frozen Chemicals
Ice Cream Truck Body Color Option:
Any Color/Advertising Printing Sticker
Rear Door Option:
Double Opening/Triple Opening/Single Opening
Side Door Option:
Single Opening/Double Opening
Condenser Mounted Option:
Over-Cab/Under Chassis/Built-In Truck Body
Key Spare Parts Partners:
Bitzer, Danfoss, EMB, REFCO
Serviced Clients:
Wall's/Nestle/Haagen Daz/Prefere Hong Kong/Meiji/Artika
Export Country/Area:
USA/UAE/Peru/Costa Rica/Ecuador/Uruguay/Sri Lanka/Hong Kong/Marco etc.
Packaging & Delivery
Packaging Details
One 40HC loaded 2 units of eutectic ice cream truck body inside
Port
Shenzhen Port, China
Lead Time :
Shipped in 30 days after payment
Truck Body Details


Ice Cream Truck Body Key Features
ColdKing eutectic ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
5.0m(L) x 2.2m(W) x 2.0m(H)
ice cream truck for sales
Ice Cream Truck Body Inner Size
4.79m(L) x 1.99m(W) x 1.79m(H)
ice cream truck for sales
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
1 (One) Set
Side Door Location
1 Set On Left
Side Door Type
Single Opening
Side Door Size
600mm(W) x 900mm(H)
Rear Door Type
800mm(W) x 1,600mm(H) Vertical Double Opening Rear Door ice cream truck for sales
Truck Body Flooring
Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate
Cargo Loading Control System
Stainless Steel Racks ice cream truck for sales
Ceiling Light
ice cream truck body
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
ice cream truck body
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
Refrigeration Unit         Service Ladder
Stainless Steel ice cream truck for sales cold car
Refrigeration Unit     Service Platform
Stainless Steel + Aluminum Chekered Plate

Lock Set With Internal Release Device

Optional lock set with internal release device for emergency inside opening for side door and rear door

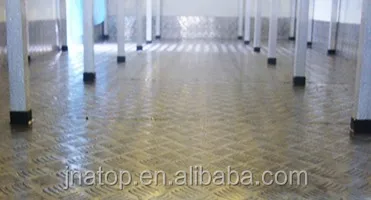

Aluminum Flooring eutectic ice cream truck body

Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate ice cream truck for sales cold car cold car

Customized Size Rear Door

Customized vertical double opening rear door with internal release device for emergency inside opening.

Internal Cargo Bracket

Internal stainless steel cargo loading bracket for standard & efficient cargo loading & unloading management.

Customized Size Side Door

Customized size single opening side door with internal release device for emergency inside opening.

Kooltube Unit

ColdKing Kooltube

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT440-14N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
Refrigeration Capacity
3,145W(@ -40C)
4,230W(@ -35C)
7,140W (@ -25C)
Total Refigeration Heat Exchange Rate
14,168Kcal/h ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Ove-Cab Mounted
Kooltube Beams Assembly
4.4m(L) x 14 Pcs
Compressor Brand & Power
Bitzer 4.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz eutectic ice cream truck body

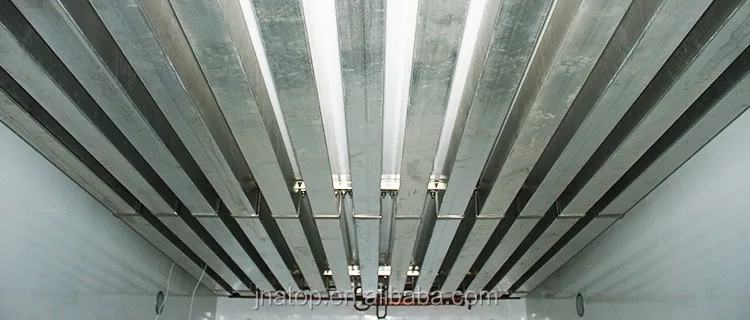

4400mm(L)  x 14 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck for sales ice cream truck for sales ice cream truck for sales cold car

Bitzer Compressor ice cream truck body

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales

Quality Components ice cream truck body

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc. ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck for sales ice cream truck

Why Kooltube
The advantages of KOOLTUBE EUTECTIC refrigeration systems as opposed to other EUTECTIC PLATE refrigeration system are as following:
Lighter:
For same refrigeration capacity, KOOLTUBE EUTECTIC refrigeration system is15% lighter than EUTECTIC PLATES refrigeration system. It is helpful to reduce curb weight and to raise loading capacity.
Better Stability:
Normally, there are need 3-8 pieces EUTECTIC PLATES for usual dimension truck body, but for KOOLTUBE EUTECTIC system is just need 8 -12 pieces tubes inside. In case of that one of them damaged or shut down,that is means KOOLTUBE system just lost 1/8 or 1/12, but for EUTECTIC PLATES is 1/3 or 1/8. It will harm goods’ quality badly.
Easy installation:
Due to rectangular tube structure and lighter weight (10.5kg/M), Kooltube is easier installation than EUTECTIC PLATES. It is enough to install whole kooltube system by two skilled workers. But, for eutectic plates system, the 80kg of each plate will occupy 3-4 workers to install it. And the design of each one or two eutectic plates with one expansion valve is challenge for engineer to make a symmetrical refrigeration effect. However, Kooltube eutectic just has one expansion valve for whole system. It is easy to adjust whole system at good condition.
Better Efficient:
Scientifically, cold Air exchange downwards. As eutectic plates is flat structure. That is means it has almost 50% performance is useless because one surface of eutectic Plate is face to roof panel.It just have 50% surface to working for body space, so they need install more eutectic plate inside body to remedy its shortage. But Kooltube eutectic system is efficient structure, it just have about 20% surface is face to roof panel; almost 80% surface is available to work.
Safety & Long Life:
KOOLTUBE’s eutectic solution is safe, non-toxic and non-corrosive for foods. eutectic plate’s cooling brine mixture solution is corrosive and skin irritation. And, for long time working, once rusting on iron shell, its corrosive mixture solution will erode and perforate eutectic plate easily. If so, when its mixture solution falls onto skin or foods, it is terribly.
Excellent Suitability:
Kooltube is tailor-made products, so we can meet any body dimension requirements. eutectic plates are standard dimension.
Faster:
Due to efficient structure and powerful condenser unit, at same body dimension and refrigeration capacity, Kooltube absolutely provide enough frozing power to goods, and it will take less time than eutectic plate.
Item
KOOLTUBE
EUTECTIC PLATE
Weight
Light
Heavy
Materials
Aluminum Alloy & Stainless Steel
Galvanized Iron
Antirust
Excellent, never rust
Bad, easier rust to perforating action on iron shell
Safety
Non-toxic, non-corrosive eutectic solution
Corrosive cooling brine mixture solution
Skin Irritation
Non
Yes
Icing
Difficult
Easy
De-icing
Easy
Difficult
Optional Items

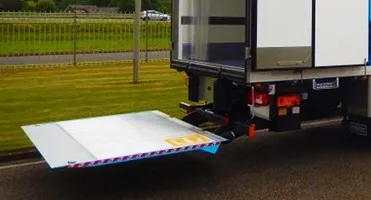

Hydraulic Tail Lift

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available For Efficient Loading & Unloading Cargos That Are Transported By Pallets, Roll Carts etc.

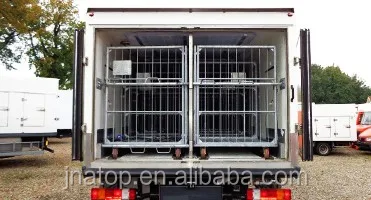

Roll Carts

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body.

Products Show

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on UD truck chassis

2.4m Ice Cream Pick Up Body

2.4m ice cream pickup body fitted on Hilux pickup chassis

4.9m Ice Cream Truck Body

4.9m ice cream truck body fitted on Isuzu NQR truck  chassis
