ColdKing 3.2m length ice cream truck body light duty JMC 2.8L -40C ice cream truck for sales

FOB Reference Price:Get Latest Price
US $28,000-32,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
COLDKING
Model:
AJC3200IC1
Place of Origin:
China
Transmission Type:
Manual
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 4
Fuel Type:
Diesel
Dimensions (L x W x H) (mm):
4.95m(L) x 1.94m(W) x 2.88m(H)
Box Dimensions (L x W x H) (mm):
3.2m(L) x 1.85m(W) x 1.9m(H)
Temperature Range:
-25C to -40C
Gross Vehicle Weight:
4500
Ice Cream Truck Chassis:
JMC CARRYING
Ice Cream Truck Engine:
JX493 2.8L 75Kw(102hp) 220Nm
Ice Cream Truck Chassis Wheelbase:
2,490mm
Ice Cream Truck Body Inner Dimension:
2990mm(L) x 1640mm(W) x 1690mm(H)
Ice Cream Truck Body Inside Volume:
8.0m3
Side Door:
2 Sets of 580mm(W) x 1100mm(H) Single Opening
Rear Door:
Full Size Double Opening
Truck Refrigeration Units:
Over-Cab Mounted Kooltube Eutectic Refrigeration Unit
Truck Refrigeration Units Temperature:
-40C To -25C
Compressor Cooling Capacity:
3,755W (-40℃), 8,535W(-25℃)
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
By Bulk Ship or Roll & Roll Ship to load ColdKing 3.2m length ice cream truck body light duty JMC 2.8L -40C ice cream truck for sales
Port
Tianjin/Qingdao Port, China
Lead Time :
Shipped in 45 days after payment

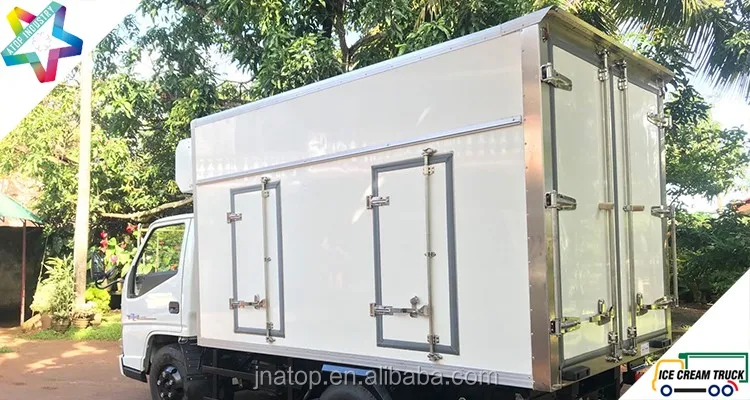

Ice Cream Truck
Ice Cream Truck Brand
ColdKing
Ice Cream Truck Model
AJC320IC1-2SD-2RD
Ice Cream Truck Outer Size
5,000mm(L) × 1,900mm(W) × 2,800mm(H)
Ice Cream Truck Body Outer Size
3,200mm(L) × 1,850mm(W) × 1,900mm(H)
Ice Cream Truck Body
Refrigerated Truck Body

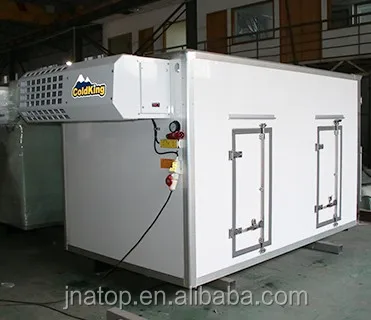

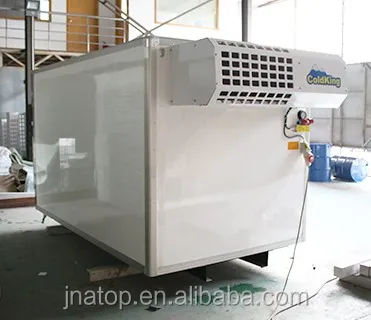

Key Features

ColdKing 3.2m ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
3.2m(L)x1.85m(W)x1.9m(H)
Truck Body Inner Size
2.99m(L)x1.64m(W)x1.69m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
2 Sets
Side Door Location
2 Sets On Left Side Wall
Side Door Type
Single Opening
Side Door Size
580mm(W) x 1,100mm(H)
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Truck Body Flooring
Reinforced Floor Covered With Removable PVC Grating ice cream truck for sales
Ceiling Light
2 (Two) Sets of 12/24V Multi-Voltage LED Lights
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Rear Door
Refrigeration Unit      Service Ladder
None ice cream truck for sales
Refrigeration Unit      Service Platform
None ice cream truck for sales
Refrigeration Units

ColdKing Kooltube eutectic unit

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT260-11N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
Refrigeration Capacity
2,485W(@ -40C)
3,335W(@ -35C)
5,620W (@ -25C)
Total Refigeration Heat Exchange Rate
6,580Kcal/h ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Over-Cab Mounted
Kooltube Beams Assembly
3.6m(L) x 11 Pcs
Compressor Brand & Power
Bitzer/Bock 3.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
380V/3Ph/50Hz ice cream truck body

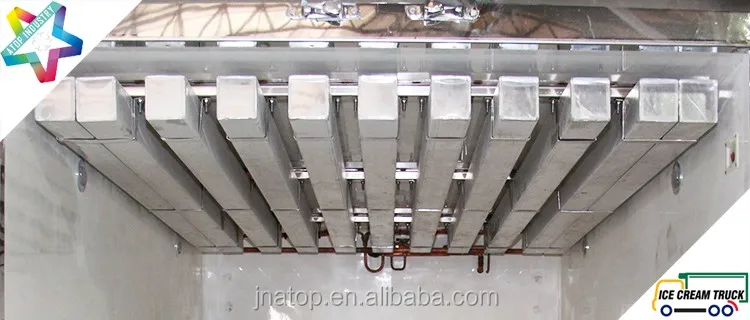

2600mm(L)  x 11 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck body

Quality Durable & Stable Compressor

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

Danfoss Parts

Schneider Electric Control

EBM Fan

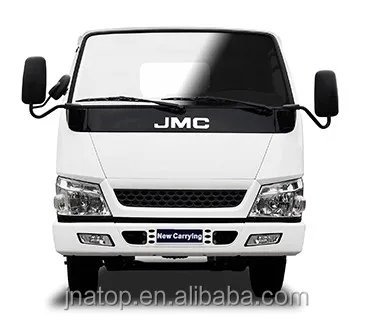

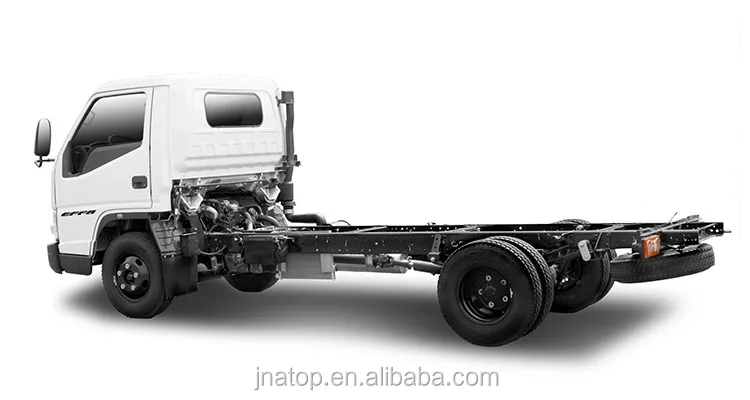

Truck Chassis
Chassis Brand
JMC
Chassis Model
CARRYING
Steering Wheel
Left/Right Hand Drive
Drive Train
4 x 2 refrigerated truck
Cab Style
Single Cab
Seating Capacity
2+1 refrigerated truck
G.V.W
3,500 Kgs
Kerb Weight
2,350 Kgs
Rated Payload
1,150 Kgs
Overall Dimension
5.0m(L)x1.9m(W)x2.8m(H)
Wheelbase
2,490mm
Max. Speed
100Km/h
Rim/Tires
6.50-15LT
Front Track
1,395mm
Rear Track
1,375mm
Engine Brand
JMC
Engine Model
JX493 2.8L  refrigerated truck
Engine Emission
EURO 4/5 refrigerated truck
Displacement
2,771cc refrigerated truck
Max. Power
75Kw (102Hp)
Max. Torque
220N.m refrigerated truck
No. of Cylinder
refrigerated truck
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger
